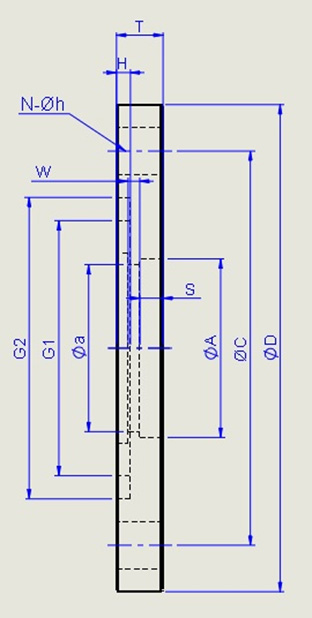

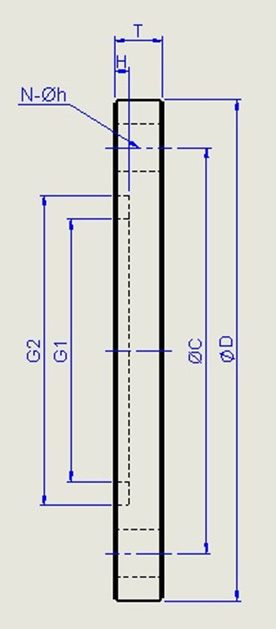

| P/N | SIZE | SPECIFICATIONS | BOLT HOLES | O-RING | BLANK |  |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ØA | ØD | T | S | Øa | w | ØC | N | h | G1 | G2 | H | |||||
 |
BBLJ010G | VG10-BLANK | 70 | 8 | 50 | 4 | 10 | 24 | 34 | 3 |  |
2D / 3D | ||||
|
BBOJ010G | VG10-BORED | 70 | 8 | 50 | 4 | 10 | 24 | 34 | 3 | 2D / 3D | |||||
|
BBLJ020G | VG20-BLANK | 80 | 8 | 60 | 4 | 10 | 34 | 44 | 3 | 2D / 3D | |||||
|
BBOJ020G | VG20-BORED | 25.6 | 80 | 8 | 3 | 24 | 2.5 | 60 | 4 | 10 | 34 | 44 | 3 | 2D / 3D | |
|
BBLJ025G | VG25-BLANK | 90 | 8 | 70 | 4 | 10 | 40 | 50 | 3 | 2D / 3D | |||||
|
BBOJ025G | VG25-BORED | 25.6 | 90 | 8 | 3 | 24 | 2.5 | 70 | 4 | 10 | 40 | 50 | 3 | 2D / 3D | |
|
BBLJ040G | VG40-BLANK | 105 | 10 | 85 | 4 | 10 | 55 | 65 | 3 | 2D / 3D | |||||
|
BBOJ040G | VG40-BORED | 38.5 | 105 | 10 | 5 | 36 | 2.5 | 85 | 4 | 10 | 55 | 65 | 3 | 2D / 3D | |
|
BBLJ050G | VG50-BLANK | 120 | 10 | 100 | 4 | 10 | 70 | 80 | 3 | 2D / 3D | |||||
|
BBOJ050G | VG50-BORED | 51 | 120 | 10 | 5 | 48 | 2.5 | 100 | 4 | 10 | 70 | 80 | 3 | 2D / 3D | |
|
BBLJ065G | VG65-BLANK | 145 | 10 | 120 | 4 | 12 | 85 | 95 | 3 | 2D / 3D | |||||
|
BBOJ065G | VG65-BORED | 63.9 | 145 | 10 | 5 | 60.5 | 2.5 | 120 | 4 | 12 | 85 | 95 | 3 | 2D / 3D | |
|
BBLJ080G | VG80-BLANK | 160 | 12 | 135 | 4 | 12 | 100 | 110 | 3 | 2D / 3D | |||||
|
BBOJ080G | VG80-BORED | 76.8 | 160 | 12 | 6 | 72.4 | 3.5 | 135 | 4 | 12 | 100 | 110 | 3 | 2D / 3D | |
|
BBLJ100G | VG100-BLANK | 185 | 12 | 160 | 8 | 12 | 120 | 130 | 3 | BORED | 2D / 3D | ||||
|
BBOJ100G | VG100-BORED | 102 | 185 | 12 | 6 | 97.8 | 3.5 | 160 | 8 | 12 | 120 | 130 | 3 |  |
2D / 3D |
|
BBLJ125G | VG125-BLANK | 210 | 12 | 185 | 8 | 12 | 150 | 160 | 3 | 2D / 3D | |||||
|
BBOJ125G | VG125-BORED | 210 | 12 | 185 | 8 | 12 | 150 | 160 | 3 | 2D / 3D | |||||
|
BBLJ150G | VG150-BLANK | 235 | 12 | 210 | 8 | 12 | 175 | 185 | 3 | 2D / 3D | |||||
|
BBOJ150G | VG150-BORED | 152.8 | 235 | 12 | 6 | 148.6 | 3.5 | 210 | 8 | 12 | 175 | 185 | 3 | 2D / 3D | |
|
BBLJ200G | VG200-BLANK | 300 | 16 | 270 | 8 | 15 | 225 | 241 | 4.5 | 2D / 3D | |||||
|
BBOJ200G | VG200-BORED | 216.8 | 300 | 16 | 9 | 209 | 4 | 270 | 8 | 15 | 225 | 241 | 4.5 | 2D / 3D | |
|
BBLJ250G | VG250-BLANK | 350 | 16 | 320 | 12 | 15 | 275 | 291 | 4.5 | 2D / 3D | |||||
|
BBOJ250G | VG250-BORED | 268 | 350 | 16 | 9 | 261.5 | 7 | 320 | 12 | 15 | 275 | 291 | 4.5 | 2D / 3D | |
|
BBLJ300G | VG300-BLANK | 400 | 16 | 370 | 12 | 15 | 325 | 341 | 4.5 | 2D / 3D | |||||
|
BBOJ300G | VG300-BORED | 400 | 16 | 370 | 12 | 15 | 325 | 341 | 4.5 | 2D / 3D | |||||
|
BBLJ350G | VG350-BLANK | 450 | 20 | 420 | 12 | 15 | 380 | 396 | 4.5 | 2D / 3D | |||||
|
BBOJ350G | VG350-BORED | 450 | 20 | 420 | 12 | 15 | 380 | 396 | 4.5 | 2D / 3D | |||||
|
BBLJ400G | VG400-BLANK | 520 | 20 | 480 | 12 | 19 | 430 | 446 | 4.5 | 2D / 3D | |||||
|
BBOJ400G | VG400-BORED | 520 | 20 | 480 | 12 | 19 | 430 | 446 | 4.5 | 2D / 3D | |||||
