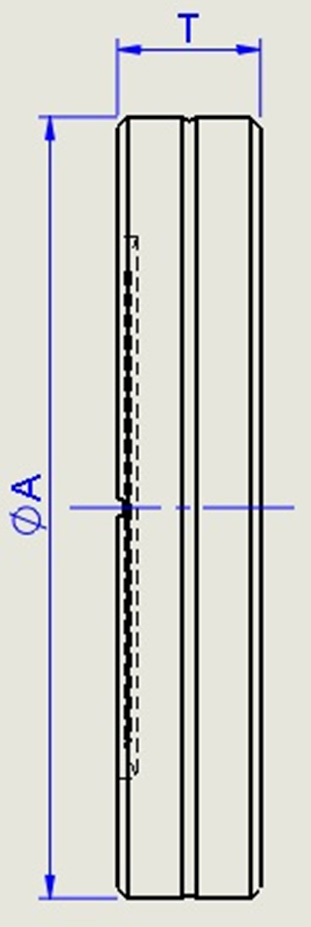

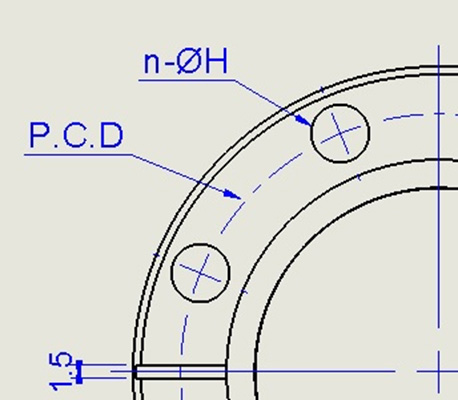

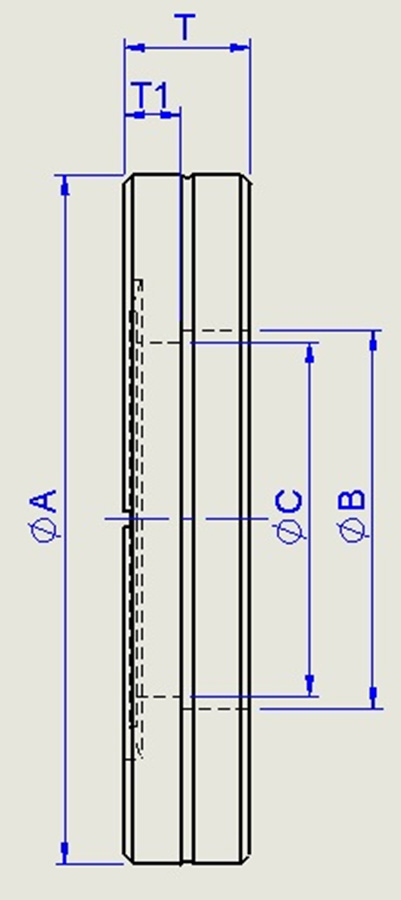

| P/N | SIZE | ØA | ØB | ØC | T | T1 | H | n | P.C.D | BLANK | BORED |  |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
BBLC13HF | CF1.33-BLANK-H | 34 | 7.3 | 4.5 | 6 | 27 |  |
 |
2D / 3D | |||
|
BBLC13TF | CF1.33-BLANK-T | 34 | 7.3 | M4 | 6 | 27 | 2D / 3D | |||||
|
BBOC13HF | CF1.33-BORED-H | 34 | 19.05 | 16.6 | 7.3 | 4.3 | 4.5 | 6 | 27 | 2D / 3D | ||
|
BBOC13TF | CF1.33-BORED-T | 34 | 19.05 | 16.6 | 7.3 | 4.3 | M4 | 6 | 27 | 2D / 3D | ||
|
BBLC21HF | CF2.125-BLANK-H | 53.8 | 11.9 | 6.6 | 4 | 41.2 | 2D / 3D | |||||
|
BBLC21TF | CF2.125-BLANK-T | 53.8 | 11.9 | M6 | 4 | 41.2 | 2D / 3D | |||||
|
BBOC21HF | CF2.125-BORED-H | 53.8 | 25.6 | 23.8 | 11.9 | 8.9 | 6.6 | 4 | 41.2 | 2D / 3D | ||
|
BBOC21TF | CF2.125-BORED-T | 53.8 | 25.6 | 23.8 | 11.9 | 8.9 | M6 | 4 | 41.2 | 2D / 3D | ||
|
BBLC27HF | CF2.75-BLANK-H | 69.5 | 12.7 | 6.6 | 6 | 58.7 | 2D / 3D | |||||
|
BBLC27TF | CF2.75-BLANK-T | 69.5 | 12.7 | M6 | 6 | 58.7 | 2D / 3D | |||||
|
BBOC27HF | CF2.75-BORED-H | 69.5 | 38.1 | 35.7 | 12.7 | 5.7 | 6.6 | 6 | 58.7 | 2D / 3D | ||
|
BBOC27TF | CF2.75-BORED-T | 69.5 | 38.1 | 35.7 | 12.7 | 5.7 | M6 | 6 | 58.7 | 2D / 3D | ||
|
BBLC33HF | CF3.375-BLANK-H | 86 | 16 | 8.6 | 8 | 72.4 | 2D / 3D | |||||
|
BBLC33TF | CF3.375-BLANK-T | 86 | 16 | M8 | 8 | 72.4 | 2D / 3D | |||||
|
BBOC33HF | CF3.375-BORED-H | 86 | 50.8 | 47.8 | 16 | 8 | 8.6 | 8 | 72.4 | 2D / 3D | ||
|
BBOC33TF | CF3.375-BORED-T | 86 | 50.8 | 47.8 | 16 | 8 | M8 | 8 | 72.4 | 2D / 3D | ||
|
BBLC45HF | CF4.5-BLANK-H | 113.5 | 17.5 | 8.6 | 8 | 92.1 | 2D / 3D | |||||
|
BBLC45TF | CF4.5-BLANK-T | 113.5 | 17.5 | M8 | 8 | 92.1 | 2D / 3D | |||||
|
BBOC45HF | CF4.5-BORED-H | 113.5 | 63.5 | 60.5 | 17.5 | 9.5 | 8.6 | 8 | 92.1 | 2D / 3D | ||
|
BBOC45TF | CF4.5-BORED-T | 113.5 | 63.5 | 60.5 | 17.5 | 9.5 | M8 | 8 | 92.1 | 2D / 3D | ||
|
BBLC06HF | CF6-BLANK-H | 152 | 20 | 8.6 | 16 | 130.2 |  |
2D / 3D | ||||
|
BBLC06TF | CF6-BLANK-T | 152 | 20 | M8 | 16 | 130.2 | 2D / 3D | |||||
|
BBOC06HF | CF6-BORED-H | 152 | 101.6 | 97.6 | 20 | 10 | 8.6 | 16 | 130.2 | 2D / 3D | ||
|
BBOC06TF | CF6-BORED-T | 152 | 101.6 | 97.6 | 20 | 10 | M8 | 16 | 130.2 | 2D / 3D | ||
|
BBLC08HF | CF8-BLANK-H | 203 | 22 | 8.6 | 20 | 181 | 2D / 3D | |||||
|
BBLC08TF | CF8-BLANK-T | 203 | 22 | M8 | 20 | 181 | 2D / 3D | |||||
|
BBOC08HF | CF8-BORED-H | 203 | 152.4 | 148.4 | 22 | 12 | 8.6 | 20 | 181 | 2D / 3D | ||
|
BBOC08TF | CF8-BORED-T | 203 | 152.4 | 148.4 | 22 | 12 | M8 | 20 | 181 | 2D / 3D | ||
|
BBLC10HF | CF10-BLANK-H | 254 | 25 | 8.6 | 24 | 231.8 | 2D / 3D | |||||
|
BBLC10TF | CF10-BLANK-T | 254 | 25 | M8 | 24 | 231.8 | 2D / 3D | |||||
|
BBOC10HF | CF10-BORED-H | 254 | 203.2 | 199 | 25 | 13 | 8.6 | 24 | 231.8 | 2D / 3D | ||
|
BBOC10TF | CF10-BORED-T | 254 | 203.2 | 199 | 25 | 13 | M8 | 24 | 231.8 | 2D / 3D | ||
|
BBLC12HF | CF12-BLANK-H | 304 | 28.6 | 8.6 | 32 | 284 | 2D / 3D | |||||
|
BBLC12TF | CF12-BLANK-T | 304 | 28.6 | M8 | 32 | 284 | 2D / 3D | |||||
|
BBOC12HF | CF12-BORED-H | 304 | 254.6 | 250.8 | 28.6 | 12.8 | 8.6 | 32 | 284 | 2D / 3D | ||
|
BBOC12TF | CF12-BORED-T | 304 | 254.6 | 250.8 | 28.6 | 12.8 | M8 | 32 | 284 | 2D / 3D | ||
|
BBLC14HF | CF14-BLANK-H | 355.6 | 28.5 | 10 | 30 | 325.4 | 2D / 3D | |||||
|
BBLC14TF | CF14-BLANK-T | 355.6 | 28.5 | M10 | 30 | 325.4 | 2D / 3D | |||||
|
BBOC14HF | CF14-BORED-H | 355.6 | 267.8 | 263.8 | 28.5 | 12.5 | 10 | 30 | 325.4 | 2D / 3D | ||
|
BBOC14TF | CF14-BORED-T | 355.6 | 267.6 | 263.8 | 28.5 | 12.5 | M10 | 30 | 325.4 | 2D / 3D | ||
